PAPER CUP MAKING MACHINE SBS-130














PAPER CUP MAKING MACHINE SBS-130
Specification | Details |
---|---|
Paper Cup Size | 2.5-14oz |
Paper Material | 140-350g/m2, One Side PE Coated Paper Or Double |
Speed | Max Speed: 120pcs/min |
Power Source | 380V 50HZ |
Heating Total Power | 5KW |
Total Power | 7KW |
Consumption Power | 5KW/h |
Weight | 2100kg |
Overall Size | 2170 X 1150 X 1820mm |
Air Pressure | 0.3-0.5MPa |
Operation Person | 1 person and more machines |
Operation Space | About 3000 X 3000mm |
Note | Can be customized according to your requirements |
Product Description
The Paper Cup Making Machine is designed with high efficiency and easy maintenance. It is, therefore, the best for Indian businesses that need precision and reliability in the production of disposable paper cups.
Key Features:
- CAM Lay Design: The Open CAM lay is placed at the top while the normal machine CAM lay is at the bottom to allow for easier maintenance and easier access to business houses operating in cities such as Mumbai, Delhi, and Chennai.
- Wires on Top: All the wires lay on the top of the machine so that there is no direct contact of wire with oil. The maintenance would also be much more convenient for manufacturers in India.

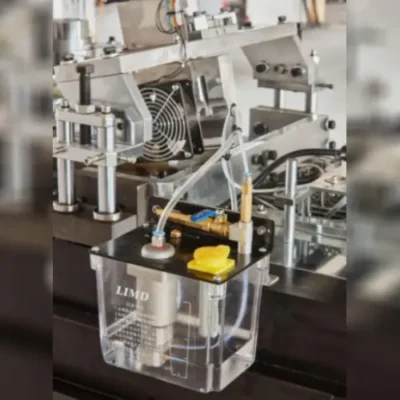

- Automatic Silicon Oil Pump: The machine is equipped with an auto silicon oil pump, ensuring no oil spraying occurs when there’s no paper feeding, which helps save costs and prevent waste, making it ideal for eco-conscious businesses in India.
- Durable Aluminum Parts: Most of the moving parts are made from aluminum materials, ensuring lighter weight, long-term durability, and minimal wear and tear.
- Bottom Paper Automatic Cutting & Conveying: Automatic bottom paper cutting and conveying allow for smoother running and no unwanted shutdowns; this is particularly beneficial to large units in Hyderabad, Bangalore, and Kolkata.
- Exclusively Designed Bottom Punch Design: It does not break and comes with a longer service life, thus providing excellent performance
- High-Speed Running: It reaches high speed and is capable of delivering fast production in response to the bigger volumes generated by Indian industries.
- Automatic Lubrication: Equipped with automatic lubrication, this machine minimizes operator involvement and ensures smooth operation over time, perfect for paper cup manufacturers in India.
- Flexible Coating Options: The machine is capable of producing single PE-coated or double PE-coated cups, offering versatility for businesses catering to different customer requirements.
- No Cup Fan Material: With this machine, there is no problem with cup cone drop, cup fan material, or bottom paper alarms, so it keeps on producing continuously without halting.
- Compact Design and Low Maintenance: The machine has its weight of 2100kg and uses materials in a very efficient way, so it is compact, reliable, easy to maintain, and suitable for small businesses as well as large manufacturing facilities in India.
